"The Matrix Fitness Ultra Base Leg Extension machine is a meticulously designed fitness device that combines comfort, usability, and efficacy. Its self-adjusting tibia pad simplifies the user experience by eliminating the need for manual adjustments.
Overview

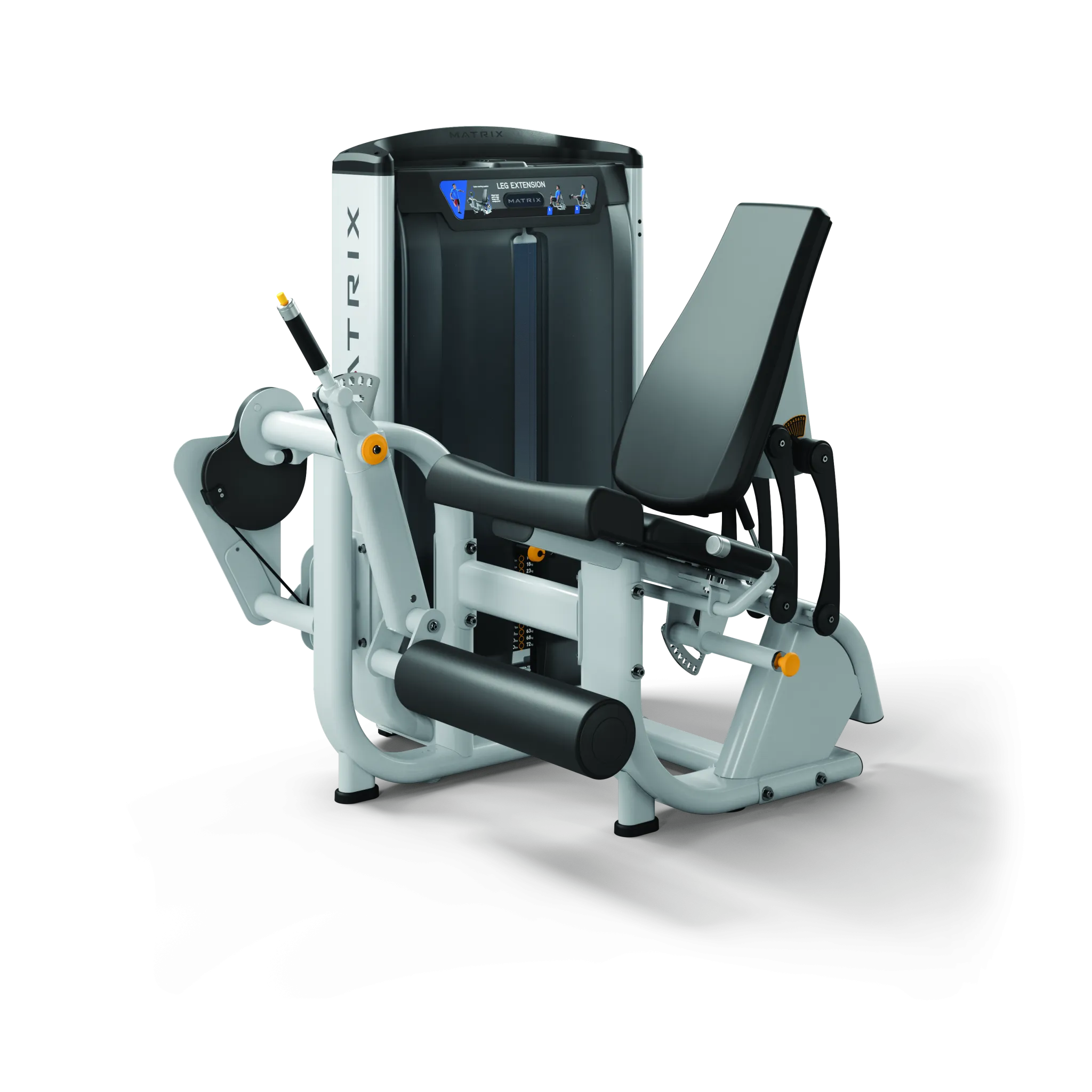

The Matrix Fitness Ultra Base Leg Extension machine is a meticulously designed fitness device that combines comfort, usability, and efficacy. Its self-adjusting tibia pad simplifies the user experience by eliminating the need for manual adjustments. Further enhancing comfort, the machine features a soft contoured knee pad, designed to cushion the user's knee throughout the exercise, promoting longer and more intense workouts. For quick and efficient setup, the device offers thumb-switch controls and an ergonomic adjustment handle that streamline the users preparation process.
This state-of-the-art machine not only provides comfort but ensures optimal results. The angled seat and back pads encourage full quadriceps contraction, ensuring an effective and focused workout. Clear markings indicate the correct pivot location, encouraging proper knee alignment to enhance safety and performance.
Like all Ultra single-station units, the Base Leg Extension boasts a compact footprint and uniformly low stack height, perfect for back-to-back configurations to maximize your floor space and improve the aesthetic of your fitness center. The machine also includes user-friendly amenities like a convenient accessory pad and personal device holder. Easy-to-read, color-coded exercise placards are placed strategically, highlighting targeted muscle groups, machine usage instructions, and the color-coded pivots to guide proper body alignment. All these features collectively offer a comprehensive leg workout experience that is user-friendly and effective.
Specifications
| User Adjustment Range | 8-position back pad with total range of 40 degrees, 6 tibia pad positions 10 degrees apart |
| Machine-Assisted User Adjustments | Gas-assisted back pad, self-aligning tibia pad |
| Color-Coded Pivots & Points of Adjustment | Yes |
| Available Frame Colors | Iced Silver, Matte Black, Graphite Grey, Gloss Black, Lace White, Polarized Titanium |
| Frame Finish | Proprietary two-coat powder process |
| Cable Transmission | Internally lubricated cables and fittings |
| Machine Anchoring | Independent machine hold down brackets |
| Integrated Leveling System | Yes, top-down leveler |
| Overall ""Static"" Dimensions | 122 x 125.9 x 135 cm / 48 x 49.6 x 53 |
| Overall ""In-Use"" Dimensions | 152.4 x 125.9 x 135 cm / 60 x 49.6 x 53 |
| Product Weight (G7-S71B) | 253 kg / 558 lbs. |
| Product Weight (G7-S71BH) | 289 kg / 638 lbs. |
| Max Training Weight (G7-S71B) | 72 kg / 160 lbs. |
| Max Training Weight (G7-S71BH) | 108 kg / 240 lbs. |
| Max User Weight | 136 kg / 300 lbs. |
| Front Placards | Muscle call outs, exercise-specific stretching, start and finish exercise illustrations, proper machine adjustments, color-coded machine identification |
| Rear Placards | Color-coded machine identification, exercise-specific stretching |
| Placard Color Coding | Blue (lower body) |
| Personal Storage | Two tactile storage mats and one personal device cradle |
| Contoured Seat | Yes |
| Total Stack Weight (G7-S71B) | 72 kg / 160 lbs. |
| Total Stack Weight (G7-S71BH) | 108 kg / 240 lbs. |
| Weight Plate Increments | 4.5 kg / 10 lbs. |
| Stack Height | 135 cm / 53 |
| Weight Stack Guarding | Full front and rear shields |
