Our Foundation Rig 3""x3"" - Wall Mount by Fringe Sport

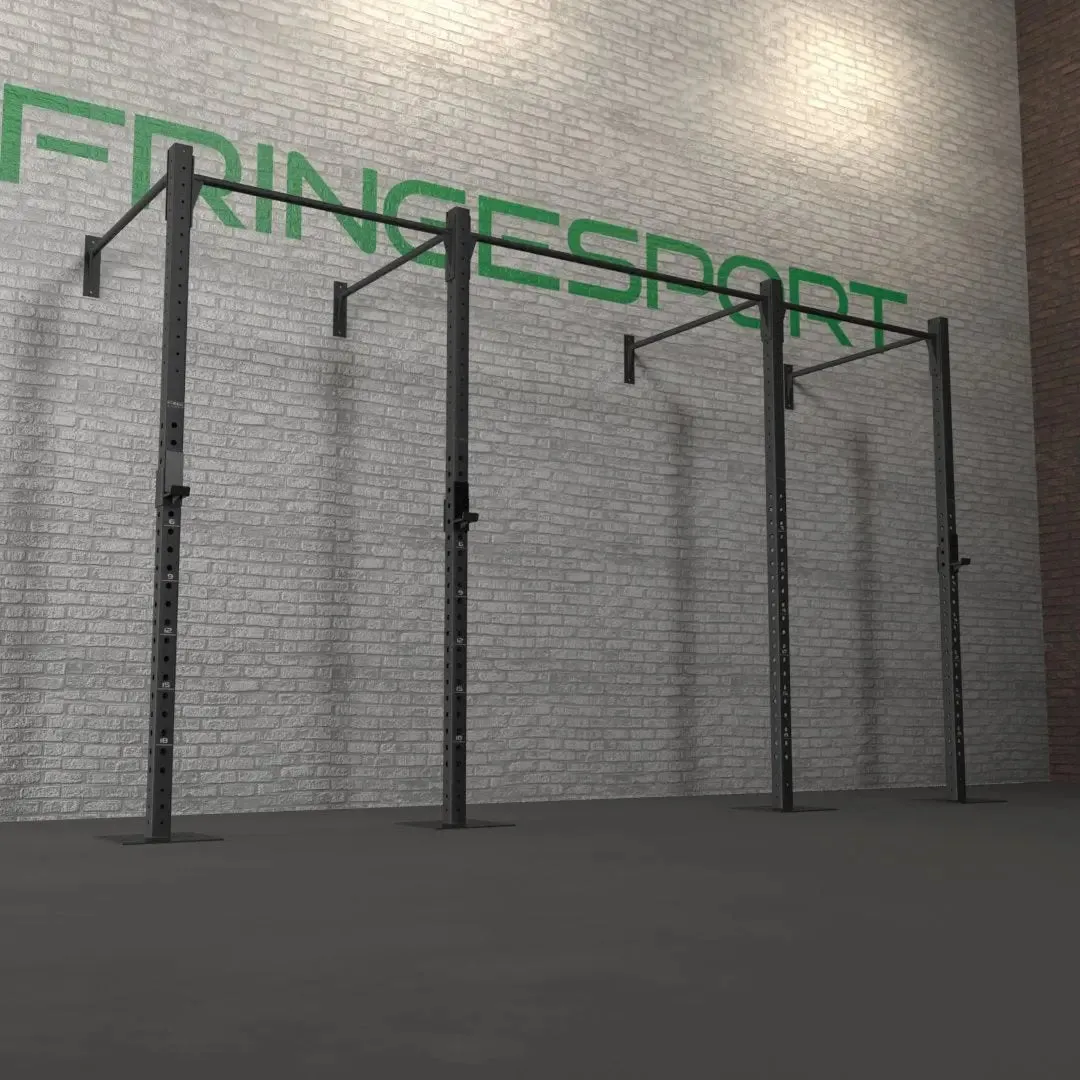

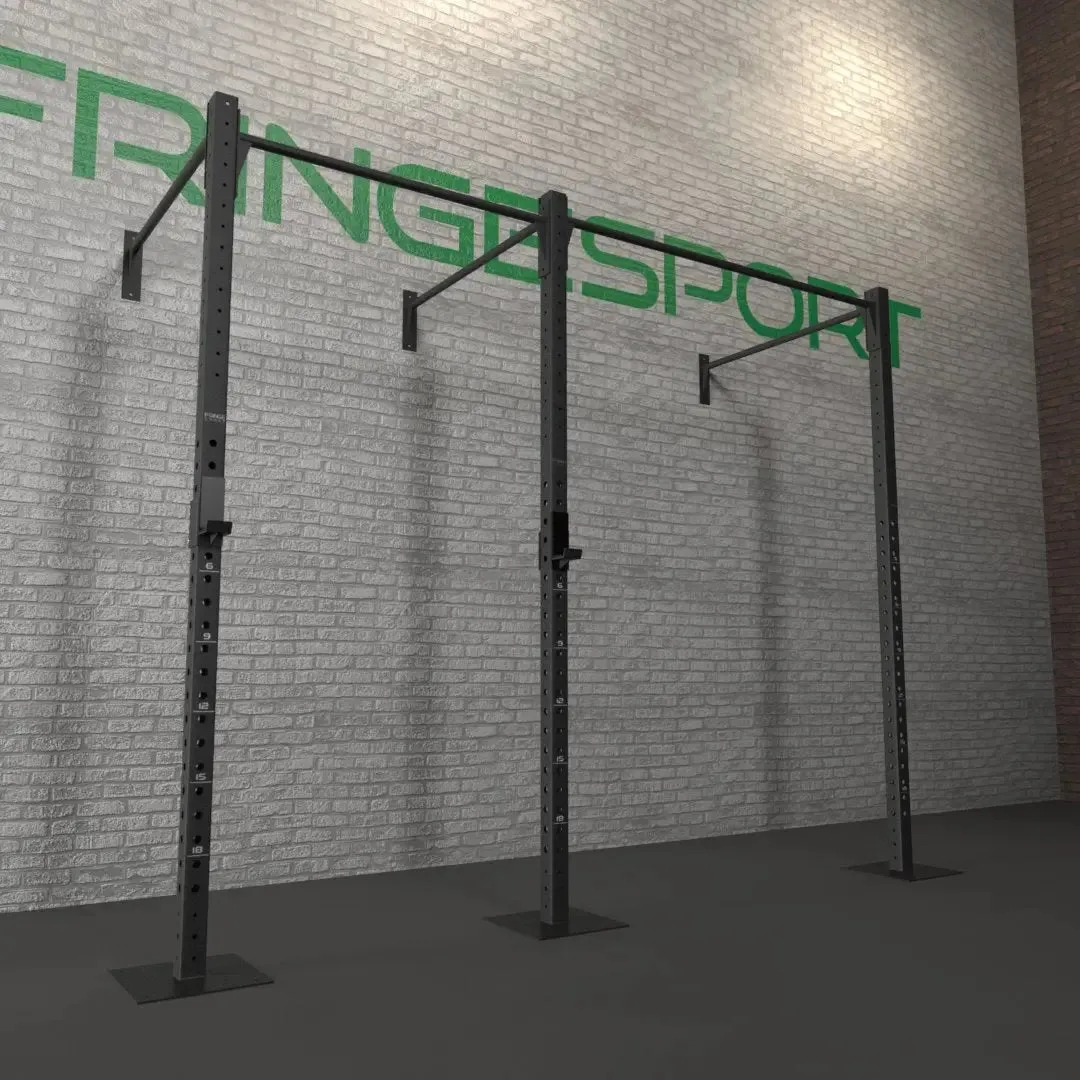

A solid pullup and squat rig is the centerpiece of most boxes, and the Wall Mounted Rig by Fringe Sport will anchor your gym. This rig features beefy 11-gauge steel with a 3""x3"" cross section for the ultimate in sturdiness. This is a wall mount rig- it's a great way to get a lot of pull-up stations and a few squat stations in, while staying on a budget or installing a rig where space is tight. Plus, the rig comes standard with muscle-up bars, and super stable UHMW lined j-cups.

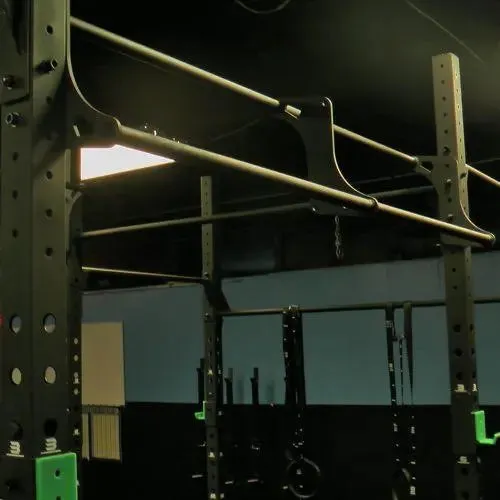

The rig in the last photo has 6ft Superman Crossbars (dual height), wall ball targets, and custom green colored uprights - all three of those options are available as upgrades for additional costs.

• Full year satisfaction guarantee, with .

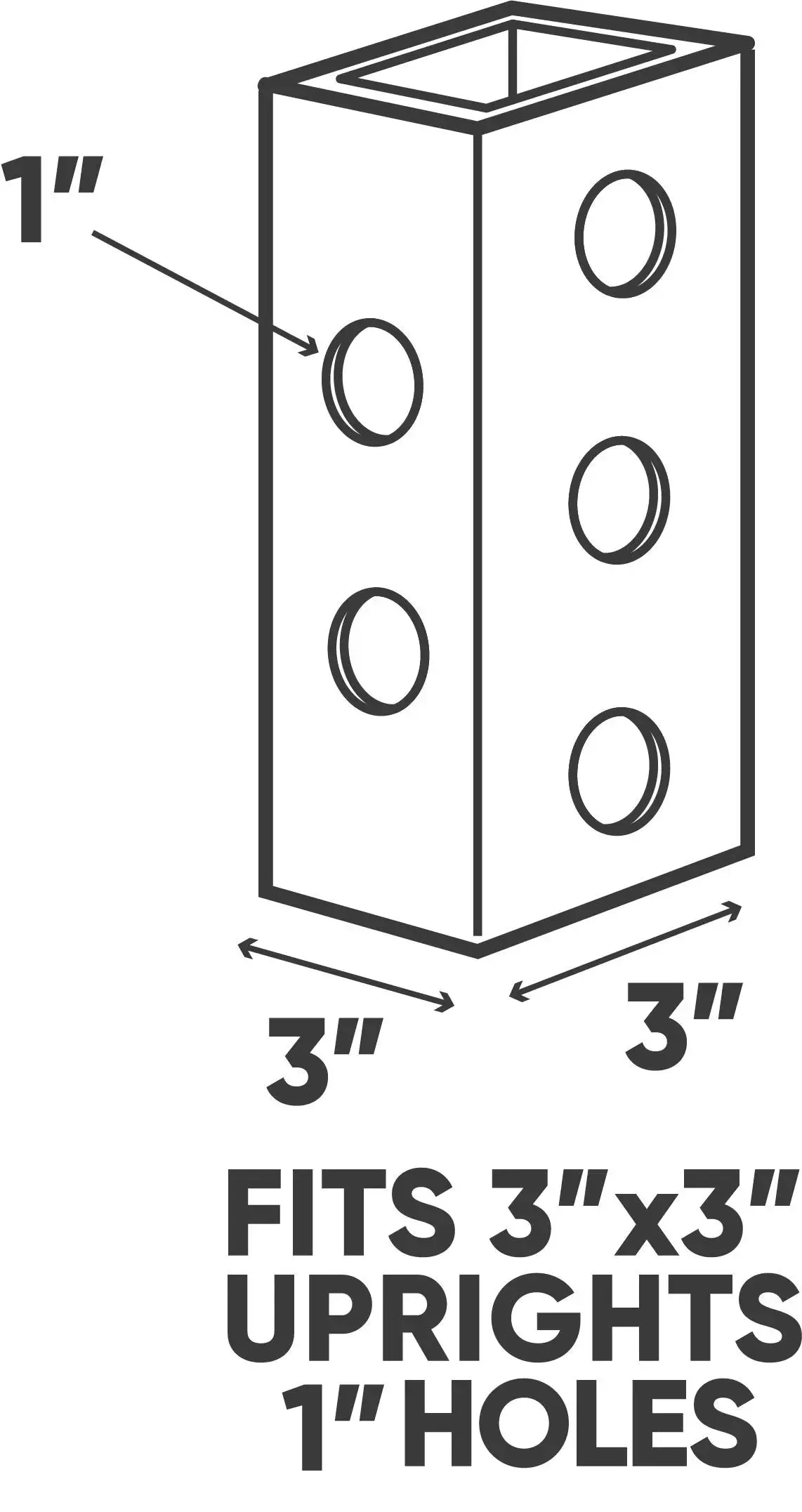

• 9 foot tall uprights - 3"" x 3"", 11-gauge steel. You can also upgrade to 12 or 15 foot tall uprights if you give us a call (512) 201-4404.
• 1"" hole diameter hardware.
• Squatting/benching lanes are 4 feet wide to accommodate racking the barbell, so we include J-Cups with UHMW plastic lining for every 4 foot lane.
• The crossbar/pullup bars diameter is 1.28 inches.

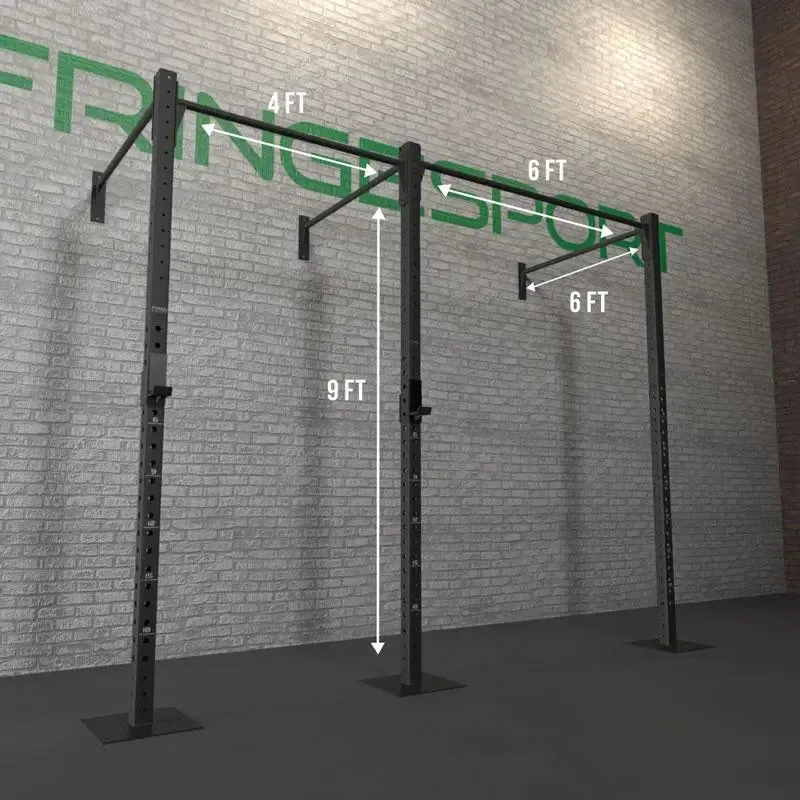

• The 4ft crossbars are 42.5"" & the 6ft are 70.8"" long.
• We alternate the section widths, 4 foot wide, 6 foot wide, 4 foot wide, etc. This allows your athletes to comfortably squat or bench in the 4 foot sections without overlapping.
• The rig is wall mounted to efficiently use your space.
• Because every gym is different and we don't know what material you'll be installing to, we do not include hardware to bolt into your wall or floor. We do provide hardware to connect the uprights to the crossbars.
• Offered online in lengths up to 30'- call us if you need a longer rig!
• Want to get colored uprights? It's $50 per upright. Give us a call to customize your rig (512) 201-4404.

Package Contents and Specifications

• Weight: 400 pounds
• Dimensions: 9ft tall, 6ft deep, and 4ft - 30ft wide depending on what your space needs.
• Material: 11-Gauge Powder Coated Steel.
• Weight Capacity: 1,000 pounds.
• Color: Black
• Shipping Note: Because of the dimensions of the uprights, any rig purchased would more than likely ship via which can take a little longer than typical USPS or UPS shipping delivery.
• Warranty: 1 Year
